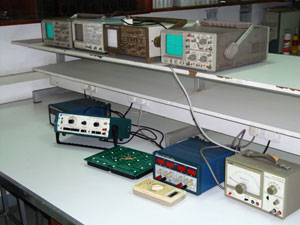

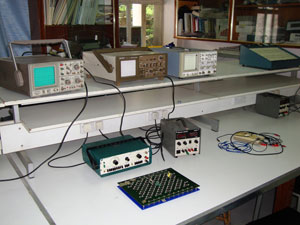

BASIC ELECTRONIC CIRCUIT SET |
|
The Basic Electronic set is made up of the following modules:
Discrete component patching module Medium wave tuned circuit module Optoelectronics module This system covers microelectronic components, circuit design and construction. It provides a rugged construction deck on which the student will build analog circuits using a range of carrier-mounted components.
|
| ANALOG PATCHING SYSTEM |
|
This complete system is written around two modules :
Through this module the student will learn the fundamentals associated with analog systems. Virtually, analog circuitry can be found in all industrial electronic systems performing many functions that are difficult or expensive to implement digitally. Analog circuits interface easily with many physical properties whose variation is also inherently analog and as such find extensive application in control systems.
|
| DIGITAL SYSTEM SET |
|
This system comprises the following modules:
AND OR NOT module NAND NOR NOT Module Sequential Logic Module Digital System Module Logic Tutor LT345 Mk2 Logic Constructor LC348 Mk2 This system covers some combinational and sequential exercises, digital system design, construction and troubleshooting . Through this, the student will learn the fundamentals of many modern electronic system elements and gain considerable practical experience in using some of the many sophisticated devices available today
|
| PC45 PROGRAMMABLE LOGIC CONTROLLERS TRAINING SYSTEM |
|
This system features a realistic application trainer and an industry standard controller. The applications trainer is totally self-contained in a base board with start/stop switches, conveyor with sensors, pneumatic piston and all drive circuits. The PC45 system has a structured, self-paced course of study, leading the student through a complete introduction to PLCs through a series of programming exercises using relays, counters and sequencers.
|
